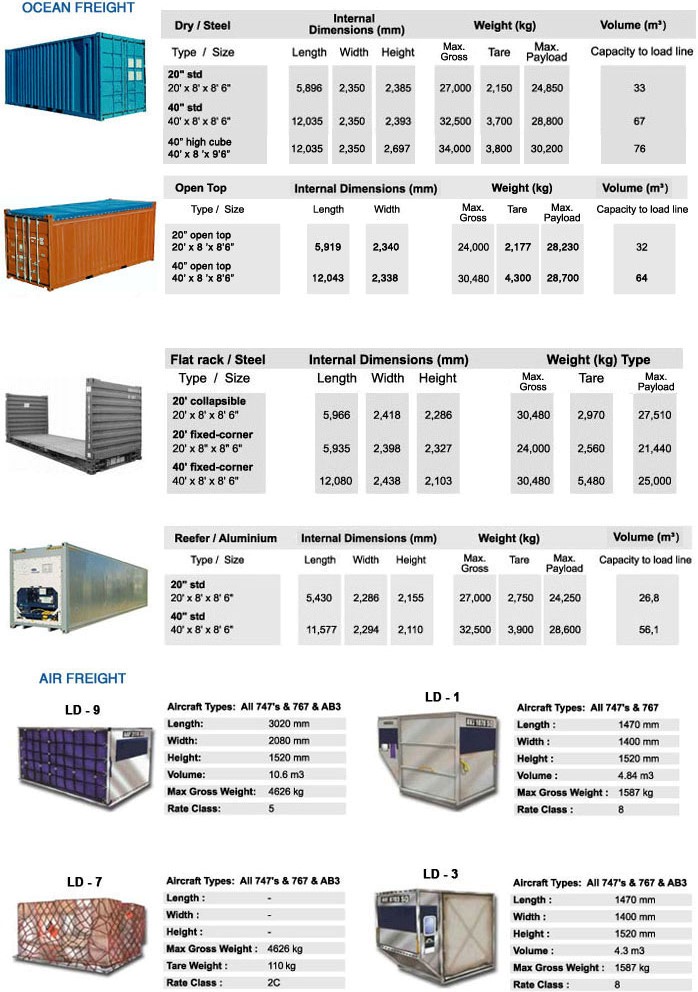

| CONTAINERS SPECIFICATIONS |
|
|
| IMPORTANT NOTE |
|
| The dimensions given are typical sizes and are given only as an indication. CASA accepts no responsibility for variations in dimensions. |
| If the dimensions are critical, please contact your local CASA representative. |
|
| GENERALITIES |
| |
|
|
|
|
|
|
|
| External Dimensions |
| L |
| W |
| H |
|
|
| 20’ Standard |
| 6.058 m |
| 2.438m |
| 2.591m |
|
|
| 20' |
| 8' |
| 8'6" |
|
|
| 40’ Standard |
| 12.192m |
| 2.438m |
| 2.591m |
|
|
| 40' |
| 8' |
| 8'6" |
|
|
| 40’ High Cube |
| 12.192m |
| 2.438m |
| 2.896m |
|
|
| 40' |
| 8' |
| 9'6" |
|
|
|
| STANDARD CONTAINERS |
|
| 20’ STANDARD STEEL CONTAINER - 22 G1 |
| INTERNAL DIMENSIONS |
|
| DOOR |
|
|
|
|
| L | W | H | W | H |
|
|
| 5.898 m | 2.352 m | 2.393 m | 2.340 m | 2.280 m |
|
|
| 19’ 4 13⁄64 ‘’ | 7’ 8 19⁄32 ‘’ | 7’ 10 7⁄32 ‘’ | 7’ 8 1⁄8 ‘’ | 7’ 5 49⁄64 ‘’ |
|
|
|
|
|
| CUBIC CAPACITY | MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
|
|
|
| 33.20 m3 | 28,260 kgs | 2,220 kgs | 30,480 kgs |
|
|
|
| 1,172.4 Cft | 62,302 Lbs | 4,894 Lbs | 67,196 Lbs |
|
|
|
|
| 40' STANDARD STEEL CONTAINER - 42 G1 |
| INTERNAL DIMENSIONS |
|
| DOOR |
|
|
|
|
| L | W | H | W | H |
|
|
| 12.032 m | 2.352 m | 2.393 m | 2.340 m | 2.280 m |
|
|
| 39' 5 45⁄64 '' | 7' 8 19⁄32 '' | 7' 10 7⁄32 '' | 7' 8 1⁄8 '' | 7' 5 49⁄64 '' |
|
|
|
|
|
| CUBIC CAPACITY | MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
|
|
|
| 67.70 m3 | 28,860 kgs | 3,640 kgs | 32,500 kgs |
|
|
|
| 2,390.8 Cft | 63,625 Lbs | 8,024 Lbs | 71,650 Lbs |
|
|
|
|
| 40' HIGH CUBE STEEL CONTAINER - 45 G1 |
| INTERNAL DIMENSIONS |
|
| DOOR |
|
|
|
|
| L | W | H | W | H |
|
|
| 12.032 m | 2.352 m | 2.698 m | 2.340 m | 2.585 m |
|
|
| 39' 5 45⁄64 '' | 7’ 8 19⁄32 ‘’ | 8' 10 7⁄32 '' | 7’ 8 1⁄8 ‘’ | 8' 5 49⁄64 '' |
|
|
|
|
|
| CUBIC CAPACITY | MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
|
|
|
| 76.40 m3 | 28,660 kgs | 3,840 kgs | 32,500 kgs |
|
|
|
| 2,698 Cft | 63,184 Lbs | 8,465 Lbs | 71,650 Lbs |
|
|
|
|
| 45' Hi-Cube Steel Dry Cargo Container - L5G1 |
| INTERNAL DIMENSIONS |
|
| DOOR |
|
|
|
|
| L | W | H | W | H |
|
|
| 13.556 m | 2.352 m | 2.698 m | 2.340 m | 2.585 m |
|
|
| 44'5 7/10 '' | 7’ 8 19⁄32 ‘’ | 8' 10 17/64 '' | 7’ 8 1⁄8 ‘’ | 8' 5 3⁄4 '' |
|
|
| NOTE: Inside height is to maxi stowage height. |
|
|
|
|
|
| CUBIC CAPACITY | MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
|
|
|
| 86 m3 | 25,610 kgs | 4,870 kgs | 30,480 kgs |
|
|
|
| 3040 Cft | 56,342 Lbs | 10,858 Lbs | 67,200 Lbs |
|
|
|
| OPEN TOP CONTAINERS |
|
| 20' OPEN TOP STEEL CONTAINER - 22 U1 |
| INTERNAL DIMENSIONS |
|
| DOOR |
|
|
|
|
| L | W | H | W | H |
|
|
| 5,902 m | 2.350 m | 2.348 m | 2.340 m | 2.280 m |
|
|
| 19' 4 23⁄64 '' | 7' 8 33⁄64 '' | 7' 8 7⁄16 '' | 7' 8 1⁄8 '' | 7' 5 49⁄64 '' |
|
|
|
|
|
| ROOF |
|
| HEADER |
|
|
|
| Btw Top Rails | Btw Top Headers | Btw Troughs | Btw Stubs |
|
|
|
| W | L | L | W |
|
|
|
| 2,252 m | 5.674 m | 5.378 m | 1.640 m |
|
|
|
| 7' 4 21⁄32 '' | 18' 7 25⁄64 '' | 17' 7 47⁄64 '' | 5' 4 9⁄16 '' |
|
|
|
| Removable swing header capable of swinging 90 degs. to either side. |
|
|
|
|
|
| MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
|
|
|
|
| 28,180 Kgs | 2,300 Kgs | 30,480 Kgs |
|
|
|
|
| 62,126 Lbs | 5,070 Lbs | 67,196 Lbs |
|
|
|
|
| 40' OPEN TOP STEEL CONTAINER - 42 U1 |
| INTERNAL DIMENSIONS |
|
| DOOR |
|
|
|
|
| L | W | H | W | H |
|
|
| 12.036 m | 2.350 m | 2.348 m | 2.340 m | 2.280 m |
|
|
| 39' 5 55⁄64 '' | 7' 8 33⁄64 '' | 7' 8 7⁄16 '' | 7' 8 1⁄8 '' | 7' 5 49⁄64 '' |
|
|
|
|
|
| ROOF |
|
| HEADER |
|
|
|
| Btw Top Rails | Btw Top Headers | Btw Troughs | Btw Stubs |
|
|
|
| W | L | L | W |
|
|
|
| 2,232 m | 11.798 m | 11.512 m | 1.940 m |
|
|
|
| 17' 3 7⁄8 '' | 38' 8 31⁄64 '' | 37' 9 15⁄64 '' | 6' 4 3⁄8 '' |
|
|
|
| Removable swing header capable of swinging 90 degs. to either side. |
|
|
|
|
|
| MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
|
|
|
|
| 26,680 Kgs | 3,800 Kgs | 30,480 Kgs |
|
|
|
|
| 58,819 Lbs | 8,377 Lbs | 67,196 Lbs |
|
|
|
| FLAT RACK CONTAINERS |
|
| 20' COLLAPSIBLE FLAT RACK - 22 P3 |
| INTERNAL DIMENSIONS |
|
| BTW HEADERS | BTW CORNERS |
|  |
|
| L | W | H | L | L | W |
|
| 5.96 m | 2.40 m | 2.29 m | 5.85 m | 5.42 m | 2.06 m |
|
| 19' 7'' | 7' 10'' | 7' 6'' | 19' 2'' | 17' 9'' | 6' 9'' |
|
|
|
| MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
|
|
|
|
| 37,000 Kgs | 3,000 Kgs | 40,000 Kgs |
|
|
|
|
| 81,571 Lbs | 6,613 Lbs | 88,184 Lbs |
|
|
|
| 40' COLLAPSIBLE FLAT RACK - 42 P3 |
| INTERNAL DIMENSIONS |
|
| BTW HEADERS | BTW CORNERS |
|  |
|
| L | W | H | L | L | W |
|
| 11.65 m | 2.37 m | 1.96 m | 12.06 m | 11.66 m | 2.22 m |
|
| 38' 3'' | 7' 9'' | 6' 5'' | 39' 7'' | 38' 3'' | 7' 3'' |
|
|
|
| MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
|
|
|
|
| 44,650 Kgs | 5,250 Kgs | 50,000 Kgs |
|
|
|
|
| 98,436 Lbs | 11,574 Lbs | 110,231 Lbs |
|
|
| REEFER CONTAINERS |
|
| 20' REEFER STEEL CONTAINER - 22 R1 |
| INTERNAL DIMENSIONS |
|
| DOOR |
|
|
|
|
| L | W | H | W | H |
|
|
| 5.456 m | 2.294 m | 2.16 m | 2.290 m | 2.264 m |
|
|
| 17' 10 51⁄64 '' | 7' 6 5⁄16 '' | 7' 1 3⁄64 '' | 7' 6 5⁄32 '' | 7' 5 9⁄64 '' |
|
|
| NOTE: Inside height is to maxi stowage height. |
|
|
|
|
|
| CUBIC CAPACITY | MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
|
|
|
| 28.40 m3 | 27,540 kgs | 2,940 kgs | 30,480 kgs |
|
|
|
| 1,002.9 Cft | 60,715 Lbs | 6,481 Lbs | 67,196 Lbs |
|
|
|
|
| 40' HIGH CUBE REEFER STEEL CONTAINER - 45 R1 |
| INTERNAL DIMENSIONS |
|
| DOOR |
|
|
|
|
| L | W | H | W | H |
|
|
| 11.59 m | 2.288 m | 2.40 m | 2.290 m | 2.569 m |
|
|
| 38' 0 19⁄64 '' | 7' 6 5⁄64 '' | 7' 10 31⁄64 '' | 7' 6 5⁄32 '' | 8' 5 9⁄64 '' |
|
|
| NOTE: Inside height is to maxi stowage height. |
|
|
|
|
|
| CUBIC CAPACITY | MAXIMUM PAYLOAD | TARE WEIGHT | MAXIMUM GROSS |
|
|
|
| 67.50 m3 | 29,400 kgs | 4,600 kgs | 34,000 kgs |
|
|
|
| 2,383.7 Cft | 64,815 Lbs | 10,141 Lbs | 74,957 Lbs |
|
|
